RF over Fiber Programmable Matrix/Combiner
MATF
MATF - Image 2
MATF - Image 3

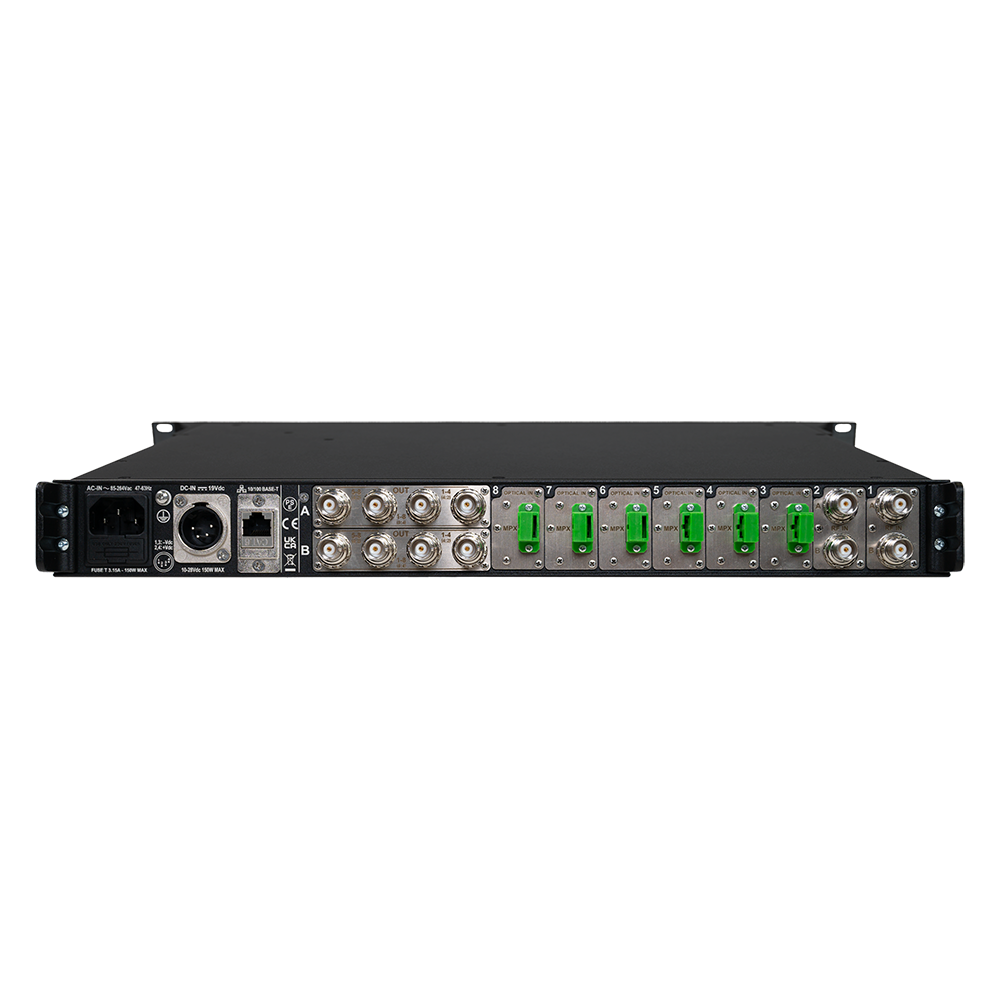

The MATF is designed to centralized RF distribution management integrating fiber and copper endpoint technologies with advanced matrix coupling in one compact frame, which offer a powerful platform that adapts to nearly any installation or workflow. Whether for theater, corporate, broadcast or OB applications, the antenna matrix offers new levels of scalability and remote management.

FEATURES

  • Extreme wideband system from 170 to 1260 MHz
  • Programmable combiner up to 8 zones in diversity configuration. Configurable by software in 8 zones into 4 outputs or dual 4 zones into 2 outputs
  • Built-in spectrum analyzer to check inputs before they are switched into the combined signals or to monitoring combined signal
  • Remote control of gain and filter thru coaxial cable of Wisycom smart antennas LFA, ADFA and BFA (coaxial modules)

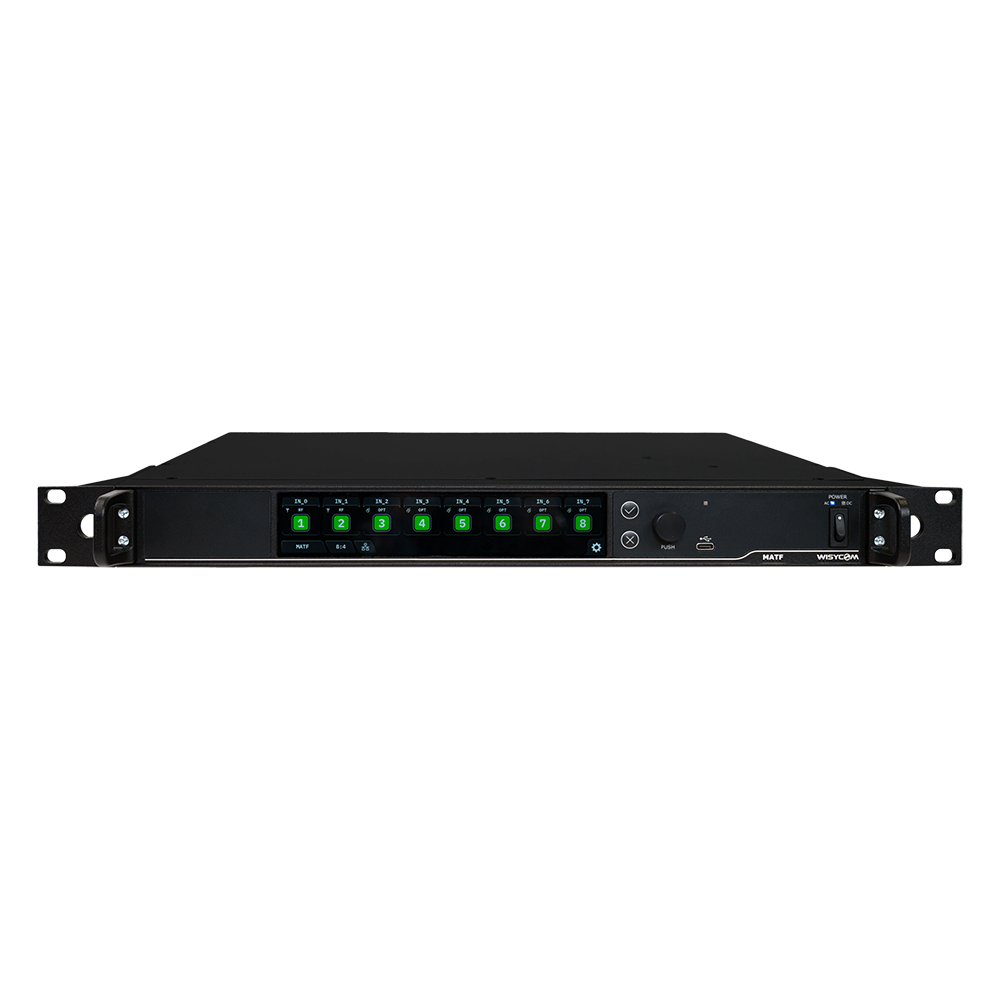

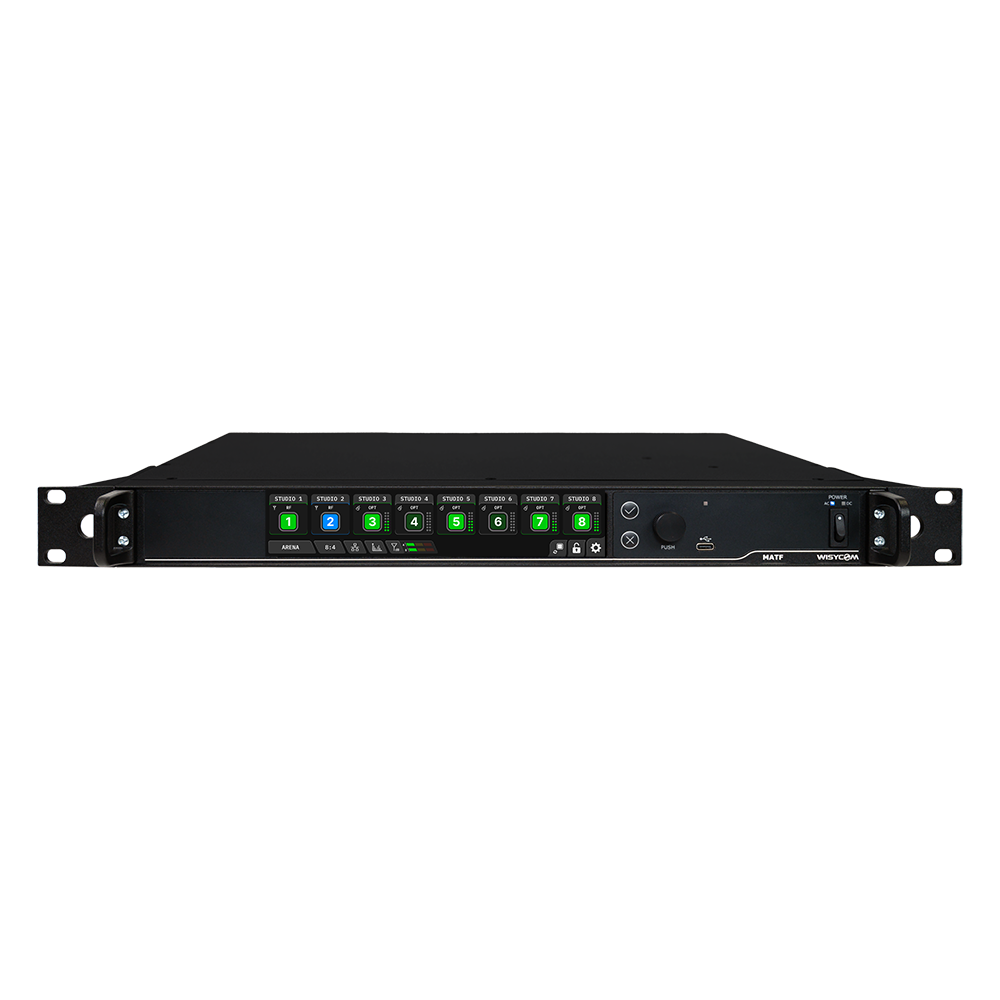

  • Easy configuration via the large colour touchscreen display
Download
Frequency ranges170 MHz to 1260 MHz
Input gain-25 to +3dB, 0.5dB steps; independent regulation for each input module, A and B separately
OIP3+22 dBm typ. for coaxial module (3dB gain)
+18 dBm typ. for optical module (3dB gain)
Amplifier linearity± 1 dB typ. for coaxial module
Noise figure6 dB typ. for coaxial module (3dB gain)
15 dB typ. for optical module (3dB gain)
Output connectors4 x BNC-F (4A & 4B), 50 Ω
Coaxial input Connector2 x BNC-F (A & B), 50 Ω
Coaxial max RF input level-10 dBm, overload alarm
Antenna booster powering+12V DC / 220 mA
+12V DC / 400 mA High Boost, for max 2 coaxial modules (software configurable)

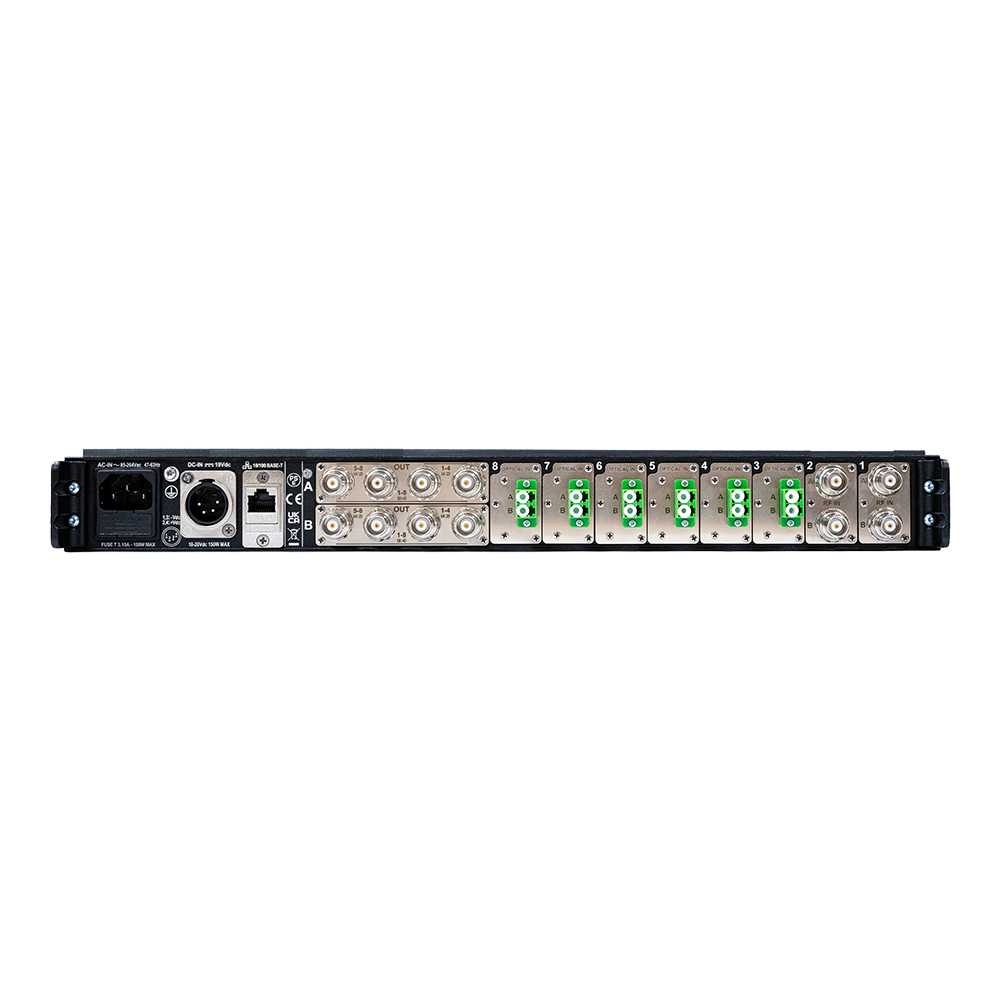

Optical input Connector2 x LC/APC for optical module without MUX, ‘F’ version
1 x SC/APC for optical module with MUX (1510nm & 1550nm), ‘M’ version
Note: All fiber links require single-mode fiber. The maximum supported number of optical modules is 6.
Optical input level-6 dBm to +6 dBm (0.25 mW to 4 mW)
Absolute max optical power10 mW
DO NOT EXCEED MAX INPUT OPTICAL POWER!
Optical Wavelength1300 nm to 1650 nm for ‘F’ module
1510 nm and 1550 nm for ‘M’ module
Scanner Frequency range170 MHz - 260 MHz and 460 MHz - 1260 MHz
Scanner Input channelsSoftware selectable between 1 of the 8 input modules or combined signals
Scanner Frequency resolution50 kHz
Scanner Input attenuatorSoftware selectable between 0 dB, 10 dB and 20 dB
Scanner Timebase accuracy (0-50°C)±2.5 ppm max
Scanner Display Noise Level-112 dBm typ.
Scanner Displayed amplitude range-117 dBm to -17 dBm
Scanner Max input level-7 dBm, 20 dB input attenuation
Scanner Amplitude accuracy±1.5 dB typ.
Scanner Input IIP3+15 dBm typ., 0 dB input attenuation
Scanner Sweep Speed70 MHz/s with diversity inputs
Scanner Full range sweep time13 seconds
USB portFor future use
Managing interfaceTouch display menu, 2 buttons and encoder,
Remote Control thru Ethernet 10/100 BaseT interface
Power supply85V - 264V AC, 47-63 Hz, 150W max, FUSE T3,15A
10V - 28V DC, 150W max
Max power consumption80 W typical, 2 coaxial modules High Boost and 6 optical modules
Display1424 x 280 px. colors touch display 16.7 M
Temperature range-10 °C to +50 °C
Dimensions 483 mm x 43.8 mm x 349 mm (LxHxD)
Weight 4.5 kg approx.

Version:  v1.1.0

Date:  2026-06-05

MATF

  • Added alarm for AC input loss.
